Image.h File Reference

#include "Gui.h"
#include "Bases.h"
#include "Tag.h"
#include "port/Glw.h"

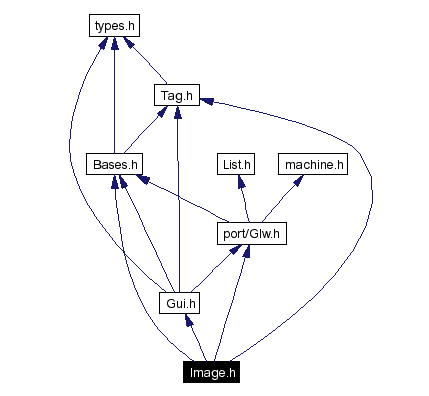

Include dependency graph for Image.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	ImageIn_s
struct	ImageInfo_s
Defines
#define	IMAGE_MAXIMUM_SIZE   4096
#define	TAG_IMG_MODULE   (TAG_USER+100)
#define	TAG_IMG_IMGINFO   (TAG_USER+101)
#define	TAG_IMG_DEST   (TAG_USER+102)
#define	TAG_IMG_DESTSIZE   (TAG_USER+103)
#define	TAG_IMG_WIDTH   (TAG_USER+104)
#define	TAG_IMG_HEIGHT   (TAG_USER+105)
#define	TAG_IMG_WINDOW   (TAG_USER+106)
#define	TAG_IMG_RECT   (TAG_USER+107)
#define	TAG_IMG_IMGWIDTH   (TAG_USER+108)
#define	TAG_IMG_IMGHEIGHT   (TAG_USER+109)
#define	TAG_IMG_NAME   ((TAG_USER+110)|TAGT_STRING)
#define	TAG_IMG_IMG_INIT   (TAG_USER+111)
#define	TAG_IMG_IMG_RENDER   (TAG_USER+112)
#define	TAG_IMG_IMG_PUTIMAGE   (TAG_USER+113)
#define	TAG_IMG_IMG_CLEAN   (TAG_USER+114)
#define	TAG_IMG_CLEANUP   (TAG_USER+115)
#define	TAG_IMG_APP   (TAG_USER+116)
#define	TAG_IMG_IMG_RECOGNIZE   (TAG_USER+117)
#define	TAG_IMG_OBJECT   (TAG_USER+118)
#define	TAG_IMG_IMAGEIN   (TAG_USER+1)
#define	TAG_IMG_IMAGENAME   (TAG_USER+2)
#define	TAG_IMG_UPDATE   (TAG_USER+3)
#define	TAG_IMG_USERDATA   (TAG_USER+4)
#define	TAG_IMG_FREEAFTERUSE   (TAG_USER+5)
Typedefs
typedef ImageIn_s	ImageIn_t
typedef ImageInfo_s	ImageInfo_t
typedef Format_s	Format_t
typedef Image_s	Image_t
Enumerations
enum	image_functions {   IMG_CLEANUPIMAGE = IMG_FUNCBASE, IMG_GETINFO, IMG_RENDERIMAGE, IMG_PUTIMAGE,   IMG_RENDERIMAGETILED, IMG_PUTIMAGETILED, IMG_INITIMAGE, IMG_REGISTERFORMAT,   IMG_REGISTERFORMATCODE, IMG_FUNC_DONE }
Functions
u32	img_CallTL (int function, tag *taglist)
u32	img_Call (int function, u32 firsttag,...)
u32	img_CleanUpImage (u32 firsttag,...)
u32	img_CleanUpImageTL (tag *taglist)
u32	img_GetInfo (u32 firsttag,...)
u32	img_GetInfoTL (tag *taglist)
u32	img_RenderImage (u32 firsttag,...)
u32	img_RenderImageTL (tag *taglist)
u32	img_PutImage (u32 firsttag,...)
u32	img_PutImageTL (tag *taglist)
u32	img_RenderImageTiled (u32 firsttag,...)
u32	img_RenderImageTiledTL (tag *taglist)
u32	img_PutImageTiled (u32 firsttag,...)
u32	img_PutImageTiledTL (tag *taglist)
u32	img_InitImage (u32 firsttag,...)
u32	img_InitImageTL (tag *taglist)
u32	img_RegisterFormat (u32 firsttag,...)
u32	img_RegisterFormatTL (tag *taglist)
u32	img_RegisterFormatCode (u32 firsttag,...)
u32	img_RegisterFormatCodeTL (tag *taglist)
int	img_Init (void)
void	img_CleanUp (void)

---

Define Documentation

#define IMAGE_MAXIMUM_SIZE   4096

Definition at line 32 of file Image.h. Referenced by flash_ImgInit, and pvf_ImgInit.

#define TAG_IMG_APP   (TAG_USER+116)

Definition at line 69 of file Image.h. Referenced by bordered_RenderImgOrCol, icon_gadget_event_handler, icon_init_gadget, icon_set_image, and img_InitImageTL.

#define TAG_IMG_CLEANUP   (TAG_USER+115)

Definition at line 68 of file Image.h. Referenced by flash_Init, img_RegisterFormatCodeTL, jpeg_Init, png_Init, pnm_Init, and pvf_Init.

#define TAG_IMG_DEST   (TAG_USER+102)

Definition at line 55 of file Image.h. Referenced by bordered_RenderImgOrCol, img_PutImageTiledTL, img_RenderImageTiledTL, and img_RenderImageTL.

#define TAG_IMG_DESTSIZE   (TAG_USER+103)

Definition at line 56 of file Image.h. Referenced by bordered_RenderImgOrCol, img_PutImageTiledTL, img_RenderImageTiledTL, and img_RenderImageTL.

#define TAG_IMG_FREEAFTERUSE   (TAG_USER+5)

Definition at line 79 of file Image.h. Referenced by icon_gadget_event_handler, and img_InitImageTL.

#define TAG_IMG_HEIGHT   (TAG_USER+105)

Definition at line 58 of file Image.h. Referenced by bordered_RenderImgOrCol, img_PutImageTiledTL, img_RenderImageTiledTL, and img_RenderImageTL.

#define TAG_IMG_IMAGEIN   (TAG_USER+1)

Definition at line 75 of file Image.h. Referenced by icon_gadget_event_handler, icon_init_gadget, and img_InitImageTL.

#define TAG_IMG_IMAGENAME   (TAG_USER+2)

Definition at line 76 of file Image.h. Referenced by bordered_RenderImgOrCol, icon_init_gadget, icon_set_image, and img_InitImageTL.

#define TAG_IMG_IMG_CLEAN   (TAG_USER+114)

Definition at line 67 of file Image.h. Referenced by flash_Init, img_RegisterFormatCodeTL, jpeg_Init, png_Init, pnm_Init, and pvf_Init.

#define TAG_IMG_IMG_INIT   (TAG_USER+111)

Definition at line 64 of file Image.h. Referenced by flash_Init, img_RegisterFormatCodeTL, jpeg_Init, png_Init, pnm_Init, and pvf_Init.

#define TAG_IMG_IMG_PUTIMAGE   (TAG_USER+113)

Definition at line 66 of file Image.h. Referenced by flash_Init, img_RegisterFormatCodeTL, jpeg_Init, png_Init, pnm_Init, and pvf_Init.

#define TAG_IMG_IMG_RECOGNIZE   (TAG_USER+117)

Definition at line 70 of file Image.h. Referenced by flash_Init, img_RegisterFormatTL, jpeg_Init, png_Init, pnm_Init, and pvf_Init.

#define TAG_IMG_IMG_RENDER   (TAG_USER+112)

Definition at line 65 of file Image.h. Referenced by flash_Init, img_RegisterFormatCodeTL, jpeg_Init, png_Init, pnm_Init, and pvf_Init.

#define TAG_IMG_IMGHEIGHT   (TAG_USER+109)

Definition at line 62 of file Image.h. Referenced by bordered_RenderImgOrCol, img_PutImageTiledTL, and img_RenderImageTiledTL.

#define TAG_IMG_IMGINFO   (TAG_USER+101)

Definition at line 54 of file Image.h. Referenced by bordered_RenderImgOrCol, icon_gadget_event_handler, icon_get_extent, icon_set_image, and img_GetInfoTL.

#define TAG_IMG_IMGWIDTH   (TAG_USER+108)

Definition at line 61 of file Image.h. Referenced by bordered_RenderImgOrCol, img_PutImageTiledTL, and img_RenderImageTiledTL.

#define TAG_IMG_MODULE   (TAG_USER+100)

Definition at line 53 of file Image.h. Referenced by flash_Init, img_RegisterFormatCodeTL, img_RegisterFormatTL, jpeg_Init, png_Init, pnm_Init, and pvf_Init.

#define TAG_IMG_NAME   ((TAG_USER+110)|TAGT_STRING)

Definition at line 63 of file Image.h. Referenced by flash_Init, img_RegisterFormatCodeTL, img_RegisterFormatTL, jpeg_Init, png_Init, pnm_Init, and pvf_Init.

#define TAG_IMG_OBJECT   (TAG_USER+118)

Definition at line 71 of file Image.h. Referenced by bordered_DeleteImage, bordered_DeleteSkin, bordered_RenderImgOrCol, icon_delete_gadget, icon_gadget_event_handler, icon_get_extent, icon_layout, icon_set_image, img_CleanUpImageTL, img_GetInfoTL, img_PutImageTiledTL, img_PutImageTL, img_RenderImageTiledTL, and img_RenderImageTL.

#define TAG_IMG_RECT   (TAG_USER+107)

Definition at line 60 of file Image.h. Referenced by bordered_RenderImgOrCol, icon_layout, img_PutImageTiledTL, and img_PutImageTL.

#define TAG_IMG_UPDATE   (TAG_USER+3)

Definition at line 77 of file Image.h.

#define TAG_IMG_USERDATA   (TAG_USER+4)

Definition at line 78 of file Image.h.

#define TAG_IMG_WIDTH   (TAG_USER+104)

Definition at line 57 of file Image.h. Referenced by bordered_RenderImgOrCol, img_PutImageTiledTL, img_RenderImageTiledTL, and img_RenderImageTL.

#define TAG_IMG_WINDOW   (TAG_USER+106)

Definition at line 59 of file Image.h. Referenced by bordered_RenderImgOrCol, icon_layout, img_PutImageTiledTL, and img_PutImageTL.

---

Typedef Documentation

typedef struct Format_s Format_t

Definition at line 99 of file Image.h.

typedef struct Image_s Image_t

Definition at line 100 of file Image.h. Referenced by bordered_RenderImgOrCol, flash_ImgCleanUp, flash_ImgInit, flash_ImgRender, flash_PutImage, icon_gadget_event_handler, icon_init_gadget, icon_set_image, img_CleanUpImageTL, img_GetInfoTL, img_InitImageByMem, img_InitImageByName, img_InitImageTL, img_PutImageTiledTL, img_PutImageTL, img_RegisterFormatCodeTL, img_RenderImageTiledTL, img_RenderImageTL, jpeg_ImgCleanUp, jpeg_ImgInit, jpeg_ImgRender, jpeg_PutImage, png_ImgCleanUp, png_ImgInit, png_ImgRender, png_PutImage, pnm_ImgCleanUp, pnm_ImgInit, pnm_ImgRender, pnm_PutImage, pvf_ImgCleanUp, pvf_ImgInit, pvf_ImgRender, and pvf_PutImage.

typedef struct ImageIn_s ImageIn_t

typedef struct ImageInfo_s ImageInfo_t

---

Enumeration Type Documentation

enum image_functions

Enumeration values: IMG_CLEANUPIMAGE  IMG_GETINFO  IMG_RENDERIMAGE  IMG_PUTIMAGE  IMG_RENDERIMAGETILED  IMG_PUTIMAGETILED  IMG_INITIMAGE  IMG_REGISTERFORMAT  IMG_REGISTERFORMATCODE  IMG_FUNC_DONE  Definition at line 36 of file Image.h.

---

Function Documentation

u32 img_Call (  int    function, u32    firsttag, ...    )

Definition at line 744 of file Image.c.

u32 img_CallTL (  int    function, tag *    taglist )

Definition at line 748 of file Image.c. Referenced by img_Call.

void img_CleanUp (  void    )

Definition at line 650 of file Image.c.

u32 img_CleanUpImage (  u32    firsttag, ...    )

Definition at line 188 of file Image.c.

u32 img_CleanUpImageTL (  tag *    taglist )

Definition at line 192 of file Image.c. Referenced by img_CleanUpImage.

u32 img_GetInfo (  u32    firsttag, ...    )

Parameters: TAG_IMG_IMGINFO  ImageInfo_t * Definition at line 237 of file Image.c.

u32 img_GetInfoTL (  tag *    taglist )

Definition at line 241 of file Image.c. Referenced by img_GetInfo.

int img_Init (  void    )

Definition at line 688 of file Image.c.

u32 img_InitImage (  u32    firsttag, ...    )

Parameters: TAG_IMG_APP  gui_App_t * TAG_IMG_IMAGEIN  ImageIn_t * TAG_IMG_FREEAFTERUSE  int TAG_IMG_IMAGENAME  char * Definition at line 70 of file Image.c.

u32 img_InitImageTL (  tag *    taglist )

Definition at line 74 of file Image.c. Referenced by img_InitImage.

u32 img_PutImage (  u32    firsttag, ...    )

Parameters: TAG_IMG_WINDOW  Window_t * TAG_IMG_RECT  Rect_t * Definition at line 324 of file Image.c.

u32 img_PutImageTiled (  u32    firsttag, ...    )

Parameters: TAG_IMG_WINDOW  Window_t * TAG_IMG_RECT  Rect_t * TAG_IMG_IMGWIDTH  int TAG_IMG_IMGHEIGHT  int Definition at line 485 of file Image.c.

u32 img_PutImageTiledTL (  tag *    taglist )

Definition at line 489 of file Image.c. Referenced by img_PutImageTiled.

u32 img_PutImageTL (  tag *    taglist )

Definition at line 328 of file Image.c. Referenced by img_PutImage.

u32 img_RegisterFormat (  u32    firsttag, ...    )

Parameters: TAG_IMG_NAME  char * TAG_IMG_MODULE  u32 TAG_IMG_IMG_RECOGNIZE  int (*)(u8 *,int) Definition at line 608 of file Image.c.

u32 img_RegisterFormatCode (  u32    firsttag, ...    )

Parameters: TAG_IMG_NAME  char * TAG_IMG_IMG_INIT  int (*)(Image_t *,void (*)(void *),void *) TAG_IMG_IMG_RENDER  int (*)(Image_t *,u8 *,int,int,int) TAG_IMG_IMG_PUTIMAGE  int (*)(Image_t *,u32 window,Rect_t *) TAG_IMG_IMG_CLEAN  void (*)(Image_t *) TAG_IMG_CLEANUP  void (*)(void) TAG_IMG_MODULE  u32 Definition at line 548 of file Image.c.

u32 img_RegisterFormatCodeTL (  tag *    taglist )

Definition at line 552 of file Image.c. Referenced by img_RegisterFormatCode.

u32 img_RegisterFormatTL (  tag *    taglist )

Definition at line 612 of file Image.c. Referenced by img_RegisterFormat.

u32 img_RenderImage (  u32    firsttag, ...    )

Parameters: TAG_IMG_DEST  u8 * TAG_IMG_DESTSIZE  int TAG_IMG_WIDTH  int TAG_IMG_HEIGHT  int Definition at line 278 of file Image.c.

u32 img_RenderImageTiled (  u32    firsttag, ...    )

Parameters: TAG_IMG_DEST  u8 * TAG_IMG_DESTSIZE  int TAG_IMG_WIDTH  int TAG_IMG_HEIGHT  int TAG_IMG_IMGWIDTH  int TAG_IMG_IMGHEIGHT  int Definition at line 376 of file Image.c. Referenced by img_PutImageTiledTL.

u32 img_RenderImageTiledTL (  tag *    taglist )

Definition at line 380 of file Image.c. Referenced by img_RenderImageTiled.

u32 img_RenderImageTL (  tag *    taglist )

Definition at line 282 of file Image.c. Referenced by img_RenderImage.

---
